HP Instrument Combination

Description

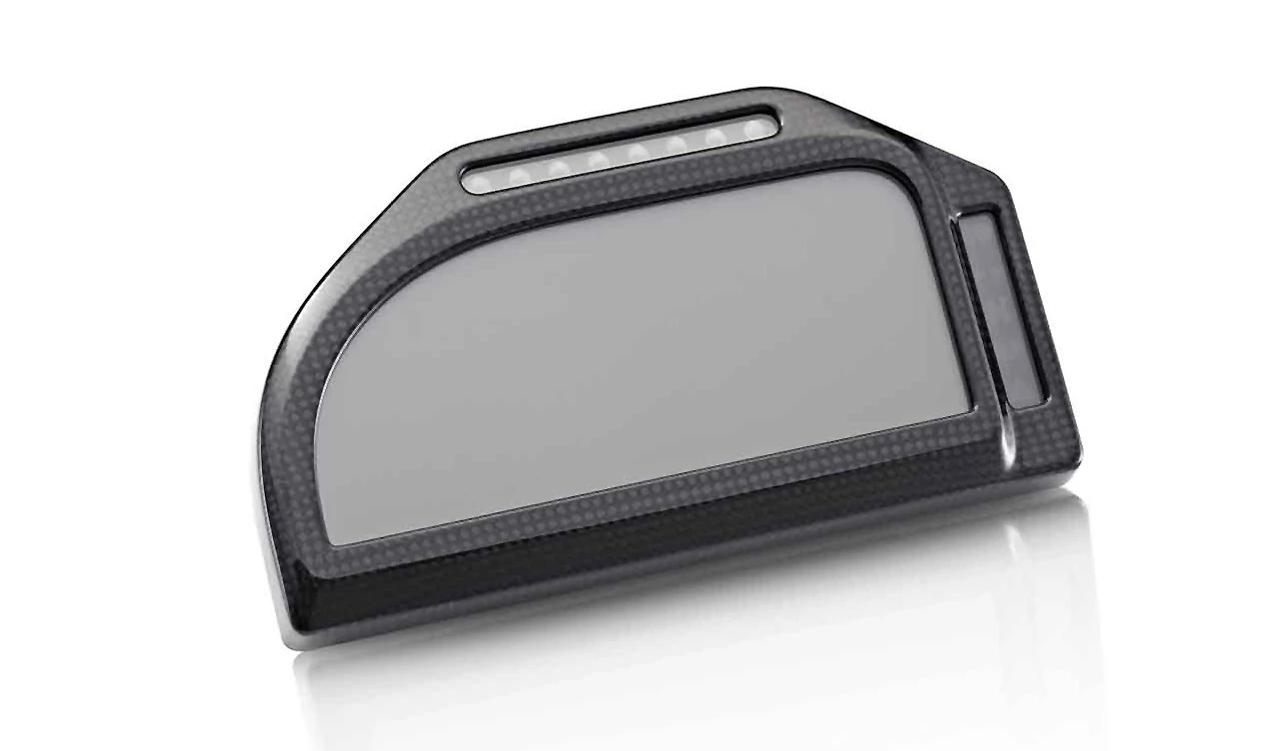

The weatherproof HP instrument combination combines the typical BMW displays with a wide range of additional racing-relevant functions, making it a real highlight for all racing enthusiasts. The HP instrument combination is operated via an additional switch with 2 buttons on the left handlebar armature: For safety reasons, the INFO and SETUP menus can only be called up when the vehicle is stationary. The "MENU" key (2) is used to control the cursor within the menu. The "SET" key (1) is used to operate the line selected by the cursor. large, clear digital display waterproof carbon housing, approx. 20 cm wide (bottom), approx. 11 cm high (middle) with a total of four display modes: ROAD mode provides all information necessary for operation on public roads: Total distance traveled, trip kilometers 1 + 2, remaining range (displayed only after the reserve is reached), clock, stopwatch, gear, speed. In RACE mode, the information important for race track operation is displayed: fastest and current lap time ("Lapmonitor"), fastest and slowest speed ("Speedmonitor"), total race time and number of laps completed. In INFO mode, it is possible to retrieve the information that was stored in RACE mode for each race lap: highest RPM, highest, lowest and average speed, number of gear changes, lap time, lap length, average throttle opening, percentage of driving time with brake applied. SETUP mode offers the possibility to customize the instrument combination to personal preferences: Lapmonitor or Speedmonitor selection in RACE mode, settings for shift flash, lap time display duration, brightness, time, reset, etc. eight LEDs, usable as RPM display or shift flash: display of maximum RPM at cold start ("RPM limiter" in warm-up phase) in ROAD mode, display of the approach to the red speed range In RACE mode, the LED band acts as a switching flash. The speed threshold can be set for each LED. This indicates to the pilot when the optimum shifting speed has been reached. Data memory: Data from up to 100 race laps can be recorded. The individual laps are recorded either manually by pressing a button or automatically with the laptimer, which is available as an accessory.

Compatibility & Installation

The following vehicle list serves as an overview. Additional vehicle-specific conditions may apply. Select a vehicle in the garage to check them.

Part of

Instrument cluster

620498

HP instrument panel

770217
